Trick to Make a One Surface Join Using CATIA Macro
|If you’ve ever tried to create a Join surface using HybridShapeAssemble function AddNewJoin you may have noticed that it requires two elements as reference or input:
Function AddNewJoin(Element1 As Reference, Element2 As Reference) As HybridShapeAssemble
But what if you want to make a join from only one surface? Often times you just want to check the tangency or connectivity of a surface or using a Join at the very end of your spec tree is a good way to show what the very last piece of geometry is. This is a trick you can use in order to create a join based on only one surface.
Basically, you input the one surface twice, create the join geometry, then remove one of the inputs. See the CATIA macro code below:

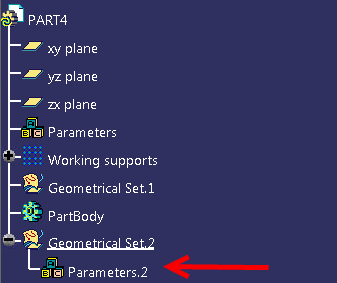

Sub CATMain() '---CATPart must be the active document Dim partDocument1 As PartDocument Set partDocument1 = CATIA.ActiveDocument Dim part1 As Part Set part1 = partDocument1.Part Dim hybridShapeFactory1 As HybridShapeFactory Set hybridShapeFactory1 = part1.HybridShapeFactory Dim hybridBodies1 As HybridBodies Set hybridBodies1 = part1.HybridBodies Dim hybridBody1 As HybridBody 'get the first geometrical set Set hybridBody1 = hybridBodies1.Item(1) Dim MyHybridShapes As HybridShapes Set MyHybridShapes = hybridBody1.HybridShapes Dim parameters1 As Parameters Set parameters1 = part1.Parameters Dim hybridShapeSurfaceExplicit1 As HybridShapeSurfaceExplicit Set hybridShapeSurfaceExplicit1 = parameters1.Item(1) Dim reference1 As Reference Set reference1 = part1.CreateReferenceFromObject(hybridShapeSurfaceExplicit1) 'instead of using two different reference surfaces, we use the same one twice Dim hybridShapeAssemble1 As HybridShapeAssemble Set hybridShapeAssemble1 = hybridShapeFactory1.AddNewJoin(reference1, reference1) '--join settings, change as desired hybridShapeAssemble1.SetConnex 0 hybridShapeAssemble1.SetManifold 0 hybridShapeAssemble1.SetSimplify 0 hybridShapeAssemble1.SetSuppressMode 0 hybridShapeAssemble1.SetDeviation 0.001 hybridShapeAssemble1.SetAngularToleranceMode 0 hybridShapeAssemble1.SetAngularTolerance 0.5 hybridShapeAssemble1.SetFederationPropagation 0 hybridBody1.AppendHybridShape hybridShapeAssemble1 part1.InWorkObject = hybridShapeAssemble1 hybridShapeAssemble1.RemoveElement 2 part1.Update End Sub
