How to keep CATIA constraints when copy and pasting

If you cut and paste parts within a CATIA V5 assembly you could end up breaking the assembly constraints that hold your product together. Luckily, there is an option that allows us to cut and paste and keep these constraints intact. Here’s two methods you can use to access that option.

Tools Options Method

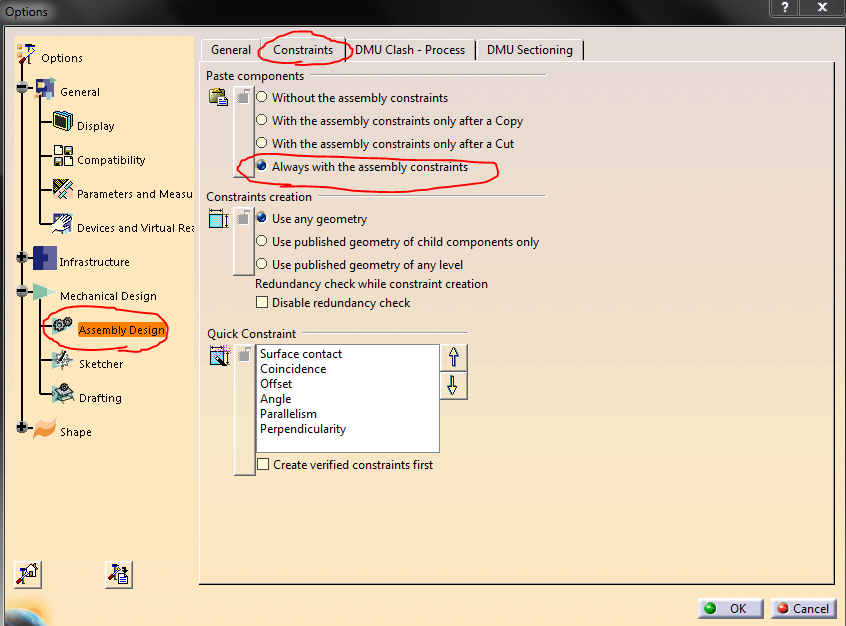

Go to Tools>Options>Mechanical Design>Assembly Design> tab: Constraints/Paste components. Check the box for “Always with the assembly constraints.”

keep assembly constraints catia



Programmatic Method

Another way is to automatically set the option by adding the following lines of code into your CATIA macro program:

Dim settingControllers1 As SettingControllers

Set settingControllers1 = CATIA.SettingControllers

Dim asmConstraintSettingAtt1 As AsmConstraintSettingAtt

Set asmConstraintSettingAtt1 = settingControllers1.Item("CATAsmConstraintSettingCtrl")

asmConstraintSettingAtt1.PasteComponentMode = catPasteWithCstOnCopyAndCut

There you have it! This code is particularly useful when you reorder the specification tree so the assembly constraints are not broken.
